2018湾流G650 | Gulfstream G650

AIRCRAFT HIGHLIGHTS

• New to the Market!
• Brand New Delivery – December 2018
• U.S. Based and Registered
• Beautiful 4-Zone Interior Configuration
• Forward Galley, Aft 135 Crew Rest
• Part 135 compliant up to 12 hours
• Jet ConneX (Ka-Band) High Speed Data
• Lightning Sensor System
• Runway Awareness Advisory System (RAAS)
• Rockwell Collins Tailwind Satellite TV System

AIRFRAME /ENGINE /APU / WEIGHT
Airframe
TTSN:      32.3 hours
TLSN:      10 landings

Time/Landings as of 14 December 2018

Engines

Type:      Rolls‐Royce BR700‐725A1‐12
#1 (Left)   #2 (Right)
Serial Number:  25777     25776
TTSN:      32.3 hours   32.3 hours
TCSN:      10 cycles   10 cycles
(2) Rolls-Royce Corporate Care program

Times/Cycles as of 14 December 2018

APU

Type:      Honeywell RE220
Serial Number:  P‐449  TTSN:      50 hours

Time as of 14 December 2018

AVIONICS / CONNECTIVITY
Gulfstream PlaneView ™ II Integrated Avionics*
AFCS:  Dual Automatic Flight Guidance System with Autothrottles & Autobrakes
EFIS:   Four (4) Honeywell DU‐1310 LCDs with Electronic Terminal Charts*
VGS:  Gulfstream Enhanced Vision System II (HUD & EVS) & Honeywell SmartView®  Synthetic Vision System*
FMS:   Triple Honeywell Primus Epic Flight Management System with WAAS/LPV*
CDU:   Triple Honeywell Multifunction Control Display Units
DATALINK:  Honeywell Communications Management Function with FANS 1/A+ CPDLC*
VHF COM:  Triple Honeywell VHF Communications System  HF COM:  Dual
HF Communications System with SELCAL
AUDIO:  Triple Audio Control Panels
SATCOM 1:  Gogo Business Aviation Axxess® II Iridium Satcom System*
SATCOM 2:  Honeywell Inmarsat Satcom System*
DATA:   Jet ConneX Ka‐band High‐speed Data System with Satcom Direct Router (SDR®)*
PHONE:  Gogo Business Aviation Axxess® II Satcom System with Multiple Handsets*
GPS:   Dual SBAS/WAAS GPS Receivers
NAV:   Triple Honeywell Navigation System
IRS:   Triple Honeywell Inertial Reference Systems
DME:   Dual Honeywell DME Receivers
ADF:   Honeywell ADF Receiver
RADAR:  Honeywell IntuVue® 3D Weather Radar System
LSS:   Honeywell LSZ‐860 Lightning Sensor System (ASC 006B)
WX:   NEXRAD Satellite Weather Uplink*
RADALT:  Dual Honeywell Digital Radio Altimeters
TAWS:  Dual Honeywell EGPWS with Runway Awareness & Advisory System (ASC 005B)*
ACAS:   Honeywell TCAS II with Change 7.1
XPNDR:  Dual Honeywell Mode S EHS Transponders with ADS‐B Out V2 (DO‐260B)
FDR:  Solid‐State Flight Data Recorder (Part 135 compliant)
CVR:  Solid‐State Cockpit Voice Recorder with RIPS
ELT:  406 MHz ELT with Navigation Interface

*Certain Installed Applications/Equipment Require Optional Subscriptions

INTERIOR / ENTERTAINMENT

Passenger Seating: Sixteen (16) Passengers
Flight Observer Seat: Yes
Crew Rest Compartment: Yes Aft Cabin

Configuration, Storage & Miscellaneous:

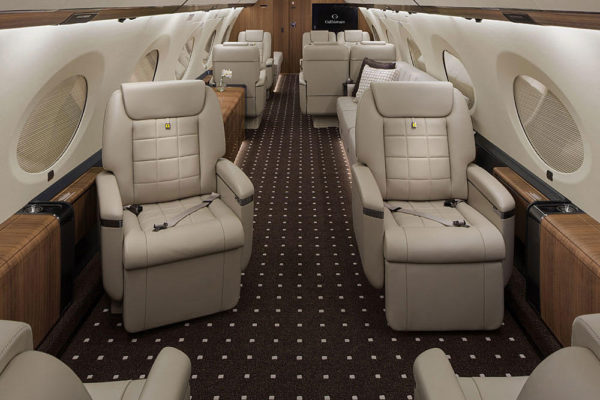

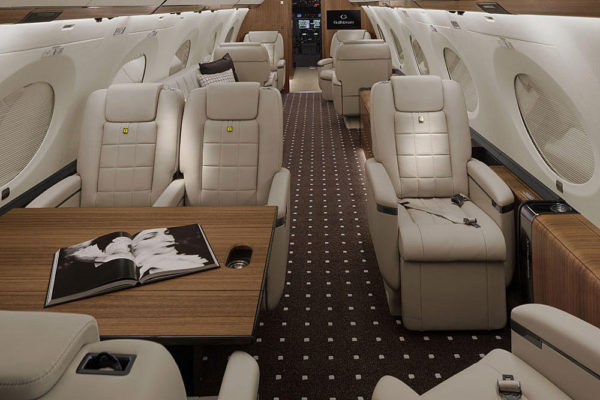

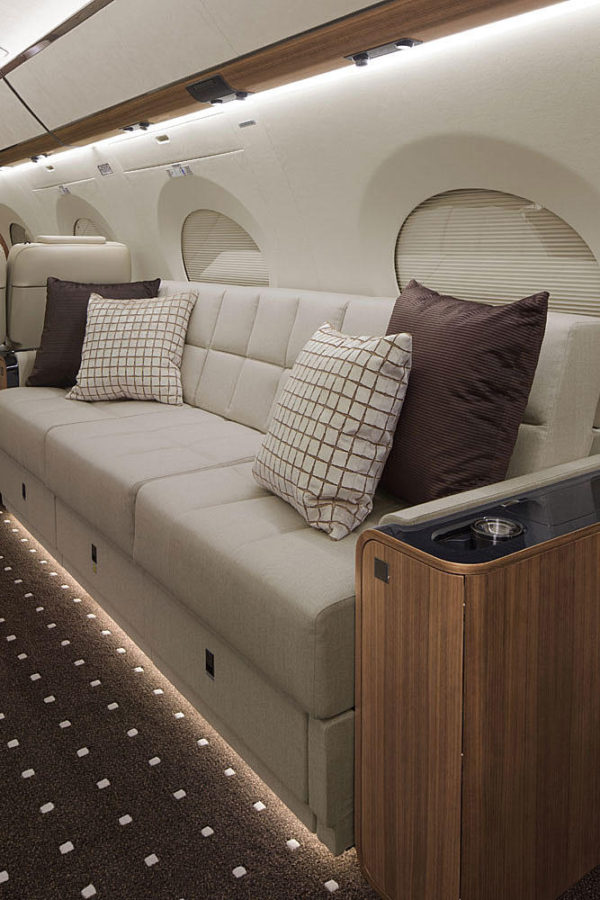

This G650 Forward Galley16 Passenger interior configuration consists of a forward galley with annex, a forward lavatory, a four-zone main cabin, an aft lavatory, and an aft in-flight accessible baggage compartment. The four-zone cabin features a forward cabin with four single seats in club configuration, a second zone with a left-hand three-place berthing divan opposite a credenza, a third zone with a left-hand four-place conference/dining group opposite two club seats, and an aft zone with a left-hand single seat opposite a three-place berthing divan that is belted for two (2) passengers during takeoff and landing.

A bulkhead with an electrically operated pocket door provides separation between the galley and forward cabin, and a second bulkhead with an electrically-operated pocket door is located between the aft mid-cabin and aft cabin areas.

The aft cabin bulkhead features the ability to lockout the door to the open (stowed) position during flights conducted under FAR Part 135 operations, during such times a removable privacy curtain is installed in a permanently mounted headliner track.

The forward cabin’s two (2) right-hand seats are powered and feature electric lumbar, a leg rest, berthing capability, memory pre-set, back cushion massage, and cushion heat. The forward cabin’s two (2) aft-facing seats, the mid-cabin’s single seats, and the aft cabin’s single seat all include manual adjustments, electric lumbar, a leg rest, and berthing capability. The conference group’s manually-controlled double seats feature electric lumbar, and drop-down inboard and center armrests.

A vestibule coat closet/storage cabinet contains a 10.1” vestibule touch-screen control panel, A/V source equipment, and a coat rod. The mid-cabin credenza features multiple custom and miscellaneous storage compartments, and an additional storage cabinet is in the aft lavatory. Electrically-operated console tables are installed at each two-place club seating area and at the aft cabin’s single seat, and a three-position conference table with folding extension is located at the mid-cabin conference group.

Crew Rest Compartment: Aft Cabin
The main cabin’s aft-most zone is designated an FAR 135 Crew Rest Compartment – Not Exceeding 12 Hours of Flight Duration, and it features a removable privacy curtain, a privacy switch, and a berthing divan which meets the minimum requirements for use by flight crew during rest periods.

Cabin Management & Entertainment:
The Gulfstream Cabin Management System (GCMS) includes wireless touch-screen passenger control units (iPod Touch), as well as other control interfaces to provide crew and passengers access to the various cabin systems such as environmental, electric window shades, and entertainment.

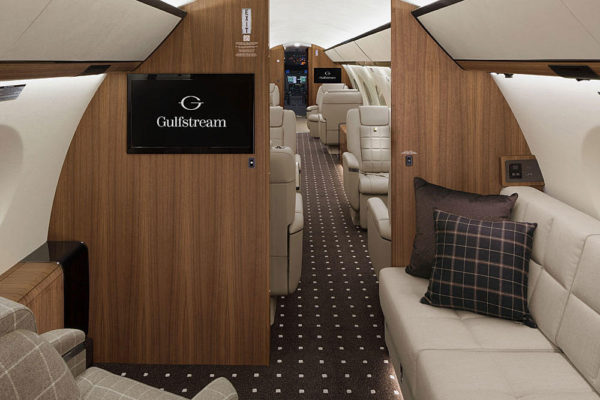

An Alto cabin audio system is complimented by a high definition cabin video system consisting of a dual slot Blu-ray player with dual 160 GB media servers and two (2) USB ports, a forward right-hand cabin bulkhead 26” widescreen HD LCD monitor, a credenza 32” widescreen HD LCD hinged monitor, one (1) each 26” widescreen HD LCD monitor on the forward and aft side of the mid-cabin left-hand bulkhead, and a 12.1” HD LCD personal monitor is mounted in each cabin single seat’s inboard armrest.

Cabin entertainment equipment includes Gulfstream CabinView™ Passenger Flight Information System, Rockwell Collins Tailwind® Standard Definition Satellite TV, an external high definition camera system with three (3) HD cameras. The personal monitors are connected to CabinView™. Various A/V inputs and ports, including HDMI and USB (charging only), are located throughout the cabin, and 115VAC/60Hz universal outlets are in installed throughout the interior.

Data & Communications:
Internet access is available through the Inmarsat Jet ConneX Ka-band high-speed data system using Honeywell JetWave™ hardware and a Satcom Direct Router (SDR®). A Gogo Business Aviation Axxess® II Iridium Satcom system interfaced with a Honeywell Inmarsat Satcom system provide satellite voice calling via multiple cabin wireless handsets and a cockpit wired handset.

Interior Finishes:
The interior woodwork is finished in “Qtr. Walnut” matte veneer with “Comp Black Ebony” gloss veneer accents, and the main cabin exposed metal features “Brushed Black Pearl Satin” plating. The main cabin features “Dice II Focus Grid” wool/silk blend carpet, and “Aeon Shift” vinyl flooring is installed in the entryway/vestibule, galley, and both lavatories. The main cabin headliner is finished in “Pale Beige” Tapisuede™, the upper sidewall panels are covered in “Sailcloth” Ultratech 7000™, and the lower sidewall panels are finished in “Custom Black Brown Small Squares” leather. The main cabin single and double seats, excluding the aft cabin’s single seat, are covered in “Caressa Custom Pebble Beach” leather, and both divans are finished in “Zelander Twill Palomino” fabric. The aft cabin’s single seat is covered in “Longdale Taupe” fabric. “Corian Oat” acrylic countertops are installed in the galley and both lavatories.

Galley: Forward

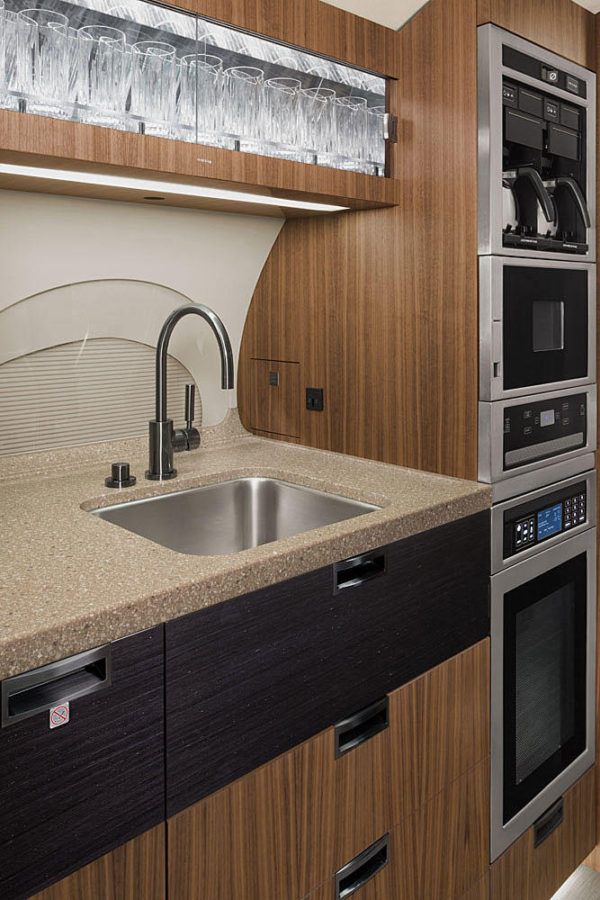

The galley features dual coffee makers, a microwave, a convection oven, countertop with pullout work surface, sink with faucet, sink cover with cutting surface, pull-out work surface, dual ice drawers, refrigerator, and multiple dedicated and miscellaneous storage drawers and compartments.

Lavatories: Forward & Aft

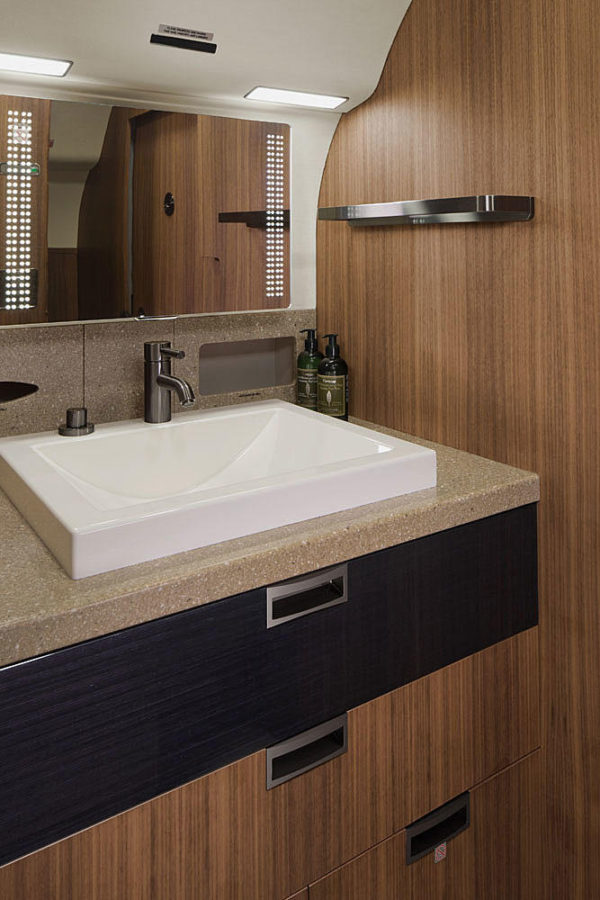

The right-hand forward lavatory features a vanity with sink and faucet, and a vacuum toilet. The aft lavatory has a vanity with sink and faucet, a vacuum toilet, and a storage cabinet.

Baggage Compartment:
An inflight accessible baggage compartment is aft of the aft lavatory and features a hinged shelf.

EXTERIOR

The aircraft is painted overall “Matterhorn White” with “Black Velvet” along the upper forward fuselage and upper tail, and with “Taupe Frost”, “Titanium Pearl”, and “Gray” stripes.

ADDITIONAL EQUIPMENT & INFORMATION

Part 135 Compliance Requirements
One (1) Spare Vinyl Floor Covering for Vestibule, FWD Lavatory, Galley & Aft Lavatory Floors
Additional (2nd) Maintenance Storage Box
Securaplane 500 Aircraft Security System
Enhanced Vision Assurance System (EVAS™)  World Map Inlay on Right hand Electronic Equipment Rack Closeout Panel (Vestibule)
